Solar panel connectors are an essential component of any solar array. They allow for quick installation, replacement, and maintenance of photovoltaic (PV) panels. It would be impractical to hard-wire solar panels together, so almost every solar installation uses weather-resistant connectors.
This article will explore the different types of solar connectors and how they compare. Most solar panel users will only ever encounter Universal Solar Connectors — as these are the industry standard — but some manufacturers still use proprietary or older technology.
What Is a Solar Panel Connector?
A solar panel connector is a device used to establish a secure and reliable electrical connection between solar panels. They also link solar panels and other components of a photovoltaic (PV) system, such as inverters, charge controllers, and batteries. Solar panel connectors ensure efficient energy transfer and minimise any power loss in the system.

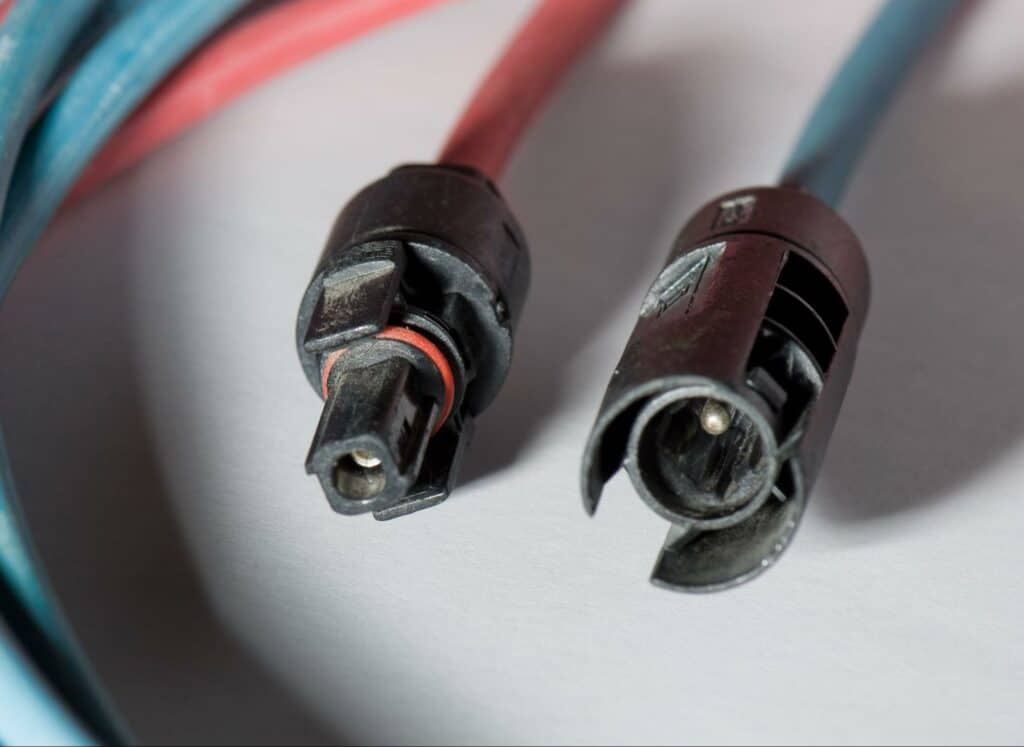

There are several types of solar panel connectors, the most common of which is the Universal Solar Connector — the industry standard. Universal Solar Connectors have multiple contacts and a contact pin diameter of 4mm.
Manufacturers design Solar Connectors to be weatherproof, UV-resistant, and resistant to harsh conditions to provide a secure connection for the long term.
Nonetheless, an issue with the connector may introduce weather vulnerabilities to the PV system.
Solar connectors come in male and female versions, ensuring a proper connection that avoids reverse polarity.
When connecting solar panels in series or parallel, it is essential to use the appropriate connection to maintain a stable and efficient PV system.
Why Are Connectors Important For Solar Panels?
Connectors are essential for solar panel systems to ensure electrical efficiency, safety, weather resistance, scalability, ease of installation and maintenance, and compatibility between components. They minimise power loss and maintain overall system efficiency by providing secure and reliable connections between solar panels and other components in the balance of system.
They also prevent potential hazards like arcing or short-circuiting and help withstand environmental conditions such as UV radiation, extreme temperatures, and moisture. A high-quality connector should be able to last the lifetime of a solar PV system (around 25 to 30 years).
Connectors facilitate the easy expansion of solar arrays and enable series or parallel configurations, allowing for flexible system design. They simplify installation, maintenance, and compatibility across different solar panel brands and components.
What Types of Connectors Are Used For Solar Panels?
Universal Solar Connectors: The Industry Standard

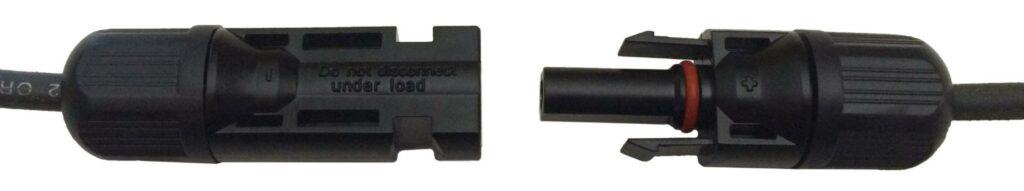

Universal Solar Connectors are the current industry standard for solar panel systems, offering a reliable and secure connection between solar panels and other components in a PV system. Used in all EcoFlow’s solar panels, they are weatherproof, UV-resistant, and durable against harsh weather. They ensure a stable connection throughout the lifetime of a solar array.
There are male and female versions, both of which establish a proper connection while avoiding reverse polarity. They have a simple push-in and lock mechanism that provides a secure connection, reducing the risk of accidental disconnections.
Due to their safety, reliability, and compatibility with various solar components, Universal Solar Connectors are used in virtually all modern solar panel arrays.
MC3: An Obsolete Technology
MC3s are an older generation of solar panel connectors. They were once popular, but Universal Solar Connectors have largely replaced them. They feature a snap-in locking mechanism that is less secure than the newer locking system.
MC3s also tend to be less weather-resistant and more prone to corrosion and wear over time. While they are still present in some PV installations, MC3s have become less common due to the superior performance, safety, and reliability of Universal Solar Connectors.
If you have a system older than ten years, it may be time to examine the connectors and upgrade them to the industry standard.
T4 Connectors
T4 connectors are another type of solar panel connector developed by Amphenol Industrial Solar Technologies. Designed as an alternative to Universal Solar Connectors, they offer some improvements in safety and ease of use.
T4 connectors have a toolless design, allowing quick and easy installation and disconnection. They eliminate the need for specialised tools. T4s also have a higher current-carrying capacity and improved durability compared to Universal Solar Connectors.
While T4 connectors are gaining popularity in PV installations, they are not as widely adopted as Universal Solar Connectors, which remain the dominant choice in the industry.
TYCO SolarLok
Tyco Solarlok connectors are specialised solar connectors manufactured by TE Connectivity (formerly Tyco Electronics). Solarlok connectors use a gender-neutral design, allowing any two connectors to mate without needing male and female components.
They are compatible with various wire sizes and feature a locking mechanism for added safety. These connectors are well-regarded for their high-quality materials and durability. They also feature excellent resistance to environmental factors like UV radiation, extreme temperatures, and moisture.
However, they are not as popular as Universal Solar Connectors, so compatibility between components could be an issue. Not all PV panels may be compatible with the Solarlok design.
Radox
Radox connectors, manufactured by HUBER+SUHNER, are another type of solar connector commonly used in the photovoltaic industry. Radox connectors are known for their high performance, reliability, and durability in harsh environments. They can withstand high temperatures, UV radiation, and other extreme conditions.
Radox connectors utilise a crimping technique to establish secure connections and are available in various types, including male and female configurations.
These connectors are compatible with Radox cables, known for their flexibility, halogen-free materials, and resistance to abrasion, heat, and cold.
What Are the Differences Between Connector Types?
Comparing the different connector types will give you a better understanding of their similarities and differences as you build your solar power system. In the table below, we will look at a variety of considerations.
| Universal Solar Connector | MC3 | T4 | Tyco | Radox | |
| Cable Cross-Section (mm2) | 2.5 – 10 | 2.5 – 10 | 2.5 – 6 | 4 – 6 | 4 – 6 |
| Rated Current | 39 – 104 A | 20 – 43 A | 15 – 45 A | 20 – 30 A | 38 A |
| Maximum Voltage | 1,000 V | 1,000 V | 1,500 V | 1,500 V | 1,000 V |
| IP Index | IP68 | IP65 | IP68 | IP65 | IP68 |
| Contact Material | Tin-plated copper | Tin-plated copper | Tin-plated copper | Tin-plated copper | Tin-plated brass |
| Maximum Temperature | 221°F (105ºC) | 221°F (105ºC) | 248°F (120ºC) | – | 185°F (85ºC) |
| Safety Mechanism | Plug lock | None | Plug lock | Plug lock | Twist lock |
| Safety Class | II | II | II | II | II |
| Locking/Unlocking Tool | Useful but not needed | Not required | Required | Required | Not required |
Rated Current
The rated current indicates the current (measured in amps) that the connector can handle. The value should exceed the maximum current generated by your PV array to avoid overheating or power loss.
Maximum Voltage
The maximum voltage rating should be higher than the voltage of your array to prevent any electrical issues from occurring.
IP Index
The Ingress Protection (IP) rating is a guideline for the connector’s resistance against dust, water, and other environmental factors. A higher rating indicates a higher level of protection.
Contact Material
The contact material should be a high-quality conductive material like copper or silver. Highly conductive material ensures a low electrical resistance and optimal energy transfer.
Maximum Temperature
Your connectors will have an optimal operating temperature range so that the PV system can withstand conditions like direct sunlight, freezing temperatures, etc.
Safety Mechanism
Most modern connectors offer a secure locking mechanism. Avoid any connectors that don’t have a locking mechanism in place.
Safety Class
The safety class is a general rating considering maximum voltage, rated current, and other factors. All connectors on our list boast a Safety Class rating of II.
Locking/Unlocking Tool
Some connectors require a specialised tool for locking and unlocking. The locking design can provide an added level of safety, but it can also be a hassle during installation and maintenance that toolless designs avoid.
How To Connect Solar Connector Wires
To connect your solar connector wires safely and securely, you’ll need to follow a few simple steps. Let’s explore how to attach and crimp a solar connector to a wire and how to lock or unlock a connection.
Attaching and Crimping a Universal Solar Connector
Attaching and crimping a solar connector to a wire involves a series of steps to ensure a secure and safe connection.
- Gather required tools: You’ll need a wire stripper, a crimping tool designed explicitly for Universal Solar Connectors, male and female connectors, and the right gauge solar wire.
- Turn off the system: Before starting, ensure the solar system is off to avoid electrical hazards.
- Strip the wire insulation: Using the wire stripper, carefully remove about 1 cm (0.4 inches) of insulation from the end of the solar wire, exposing the metal conductor.
- Assemble the connector: Slide the appropriate Universal Solar Connector housing (either male or female) onto the stripped wire end. Make sure to slide on the waterproof sealing gland and the metal locking clip.
- Prepare the crimping tool: Open the crimping tool and insert the Universal Solar Connector crimp pin (male or female) into the designated slot. This slot will hold the pin securely while you perform the crimping process.
- Crimp the connector pin: Insert the stripped end of the solar wire into the crimp pin held by the crimping tool. Squeeze the crimping tool’s handles firmly to crimp the pin onto the wire, creating a robust and secure connection. Release the handles and remove the crimped pin from the tool. Gently tug on the wire to ensure the crimp is secure.
- Insert the crimped pin into the connector housing: Push the crimped pin into the Universal Solar Connector housing until it clicks into place, ensuring a secure connection. You shouldn’t be able to pull the pin out easily.
- Assemble the connector: Slide the waterproof sealing gland and the metal locking clip towards the connector housing. Tighten the sealing gland onto the connector housing to create a watertight seal.
- Test the connection: Once the crimped solar connector is securely attached to the wire, connect it to the corresponding connector on the other solar wire (male to female, or vice versa). The connectors should click together, indicating a secure connection.
Locking and Unlocking
Locking and unlocking solar connectors are essential to ensure safe solar system connections. Most solar connectors are designed with a built-in locking mechanism to prevent accidental disconnection and maintain a reliable electrical connection.
- Locking Solar Connectors: When connecting solar connectors, simply align the male and female connectors and push them together. You will hear a clicking sound, indicating the locking mechanism has engaged. The built-in locking mechanism prevents the connectors from pulling apart accidentally, ensuring a stable connection throughout the system’s operation.
- Unlocking Solar Connectors: To disconnect Universal Solar Connectors, you will need a specialised unlocking tool known as a Universal Solar Connector disconnect tool or spanner. Other connector types may have their specialised unlocking tool. These tools disengage the locking mechanism and safely separate the connectors without damaging them.
Place the appropriate side of the unlocking tool around the connected solar connectors, aligning the tool’s grooves with the connector’s outer edges. Squeeze the tool’s handles firmly, causing the tool to grip the connectors and disengage the locking mechanism. Gently pull the connectors apart while keeping the tool in place.
To ensure your safety, always ensure the solar system is off before locking or unlocking solar connectors.
Frequently Asked Questions
What Is the Difference Between MC3 and Universal Solar Connectors?
MC3 connectors are the older generation of solar connectors. They have a snap-in locking mechanism, while Universal Solar Connectors feature a more secure, waterproof locking system. Universal Solar Connectors have become the industry standard due to their improved safety, reliability, and compatibility across various solar panel brands and components.
Do All Solar Panels Use Universal Solar Connectors?
Universal Solar Connectors are the industry standard present in almost all recently manufactured solar panels. Some manufacturers use proprietary or older MC3 connectors. These solar panels are likely older and less efficient. Universal Solar Connectors improve the compatibility, safety, and reliability of solar panels and their wiring.
Conclusion
Solar panel connectors ensure that your panels and other components have reliable, secure connections. They allow for easy maintenance, installation, and replacement. When purchasing solar panels and corresponding components, make sure they use high-quality connectors like the standard Universal Solar Connector.
EcoFlow is a leading manufacturer of solar panels, all of which utilise Universal Solar Connectors.
